CEE Form 2P+E 125A IP67 Plug
Connectors & Accessories

CEE Form 2P+E 125A IP67 Plug

Poles
2P+E
Rated current
125A
Protection
IP67
Rated voltage
110 / 230 / 400 V
Standard
IEC 60309-2
Request a quote Datasheet (PDF)
  • Ships within 3–5 business days, subject to prior ex-stock sales
  • Available in 3 models. See the models
  • Made to IEC 60309 for industrial plugs and sockets
  • Need help choosing? Call +65 6747 3336

About CEE Form 2P+E 125A IP67 Plug

IP67 dust-tight and watertight CEE industrial plug to IEC 60309-2 for 125 A circuits. Made in 110 V (yellow), 230 V (blue) and 400 V (red) versions; the clock position of the earth contact keys each plug to its voltage, so it only mates with the matching socket.

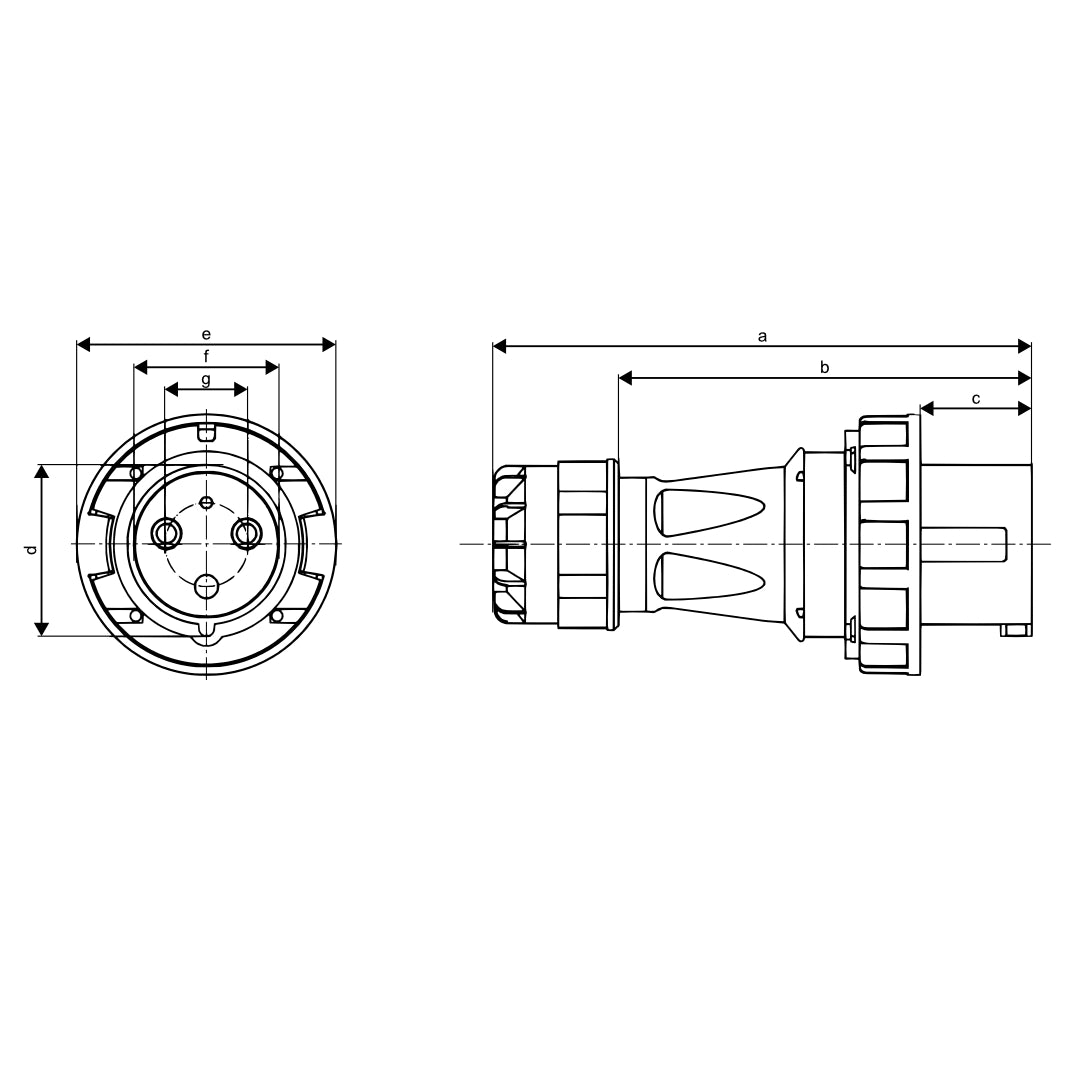

Dimension mm
a 282.6
b 218.6
c 95.7
d 87.2
e 132.8
f 74.4
g 42.5

Dimensions a to g refer to the drawing.

Electrical
Rated current125 A
Rated voltage110 / 230 / 400 V
Frequency50/60 Hz
Number of poles2P+E (3 pins)
Earth contact position110 V – 4h · 230 V – 6h · 400 V – 9h
Mechanical
Degree of protectionIP67 – dust-tight, protected against temporary immersion
Conductor cross-section25–35 mm²
Packaging
Net weight961 g per plug
Packing quantity5 pcs
Standards and compliance
StandardIEC 60309-2
