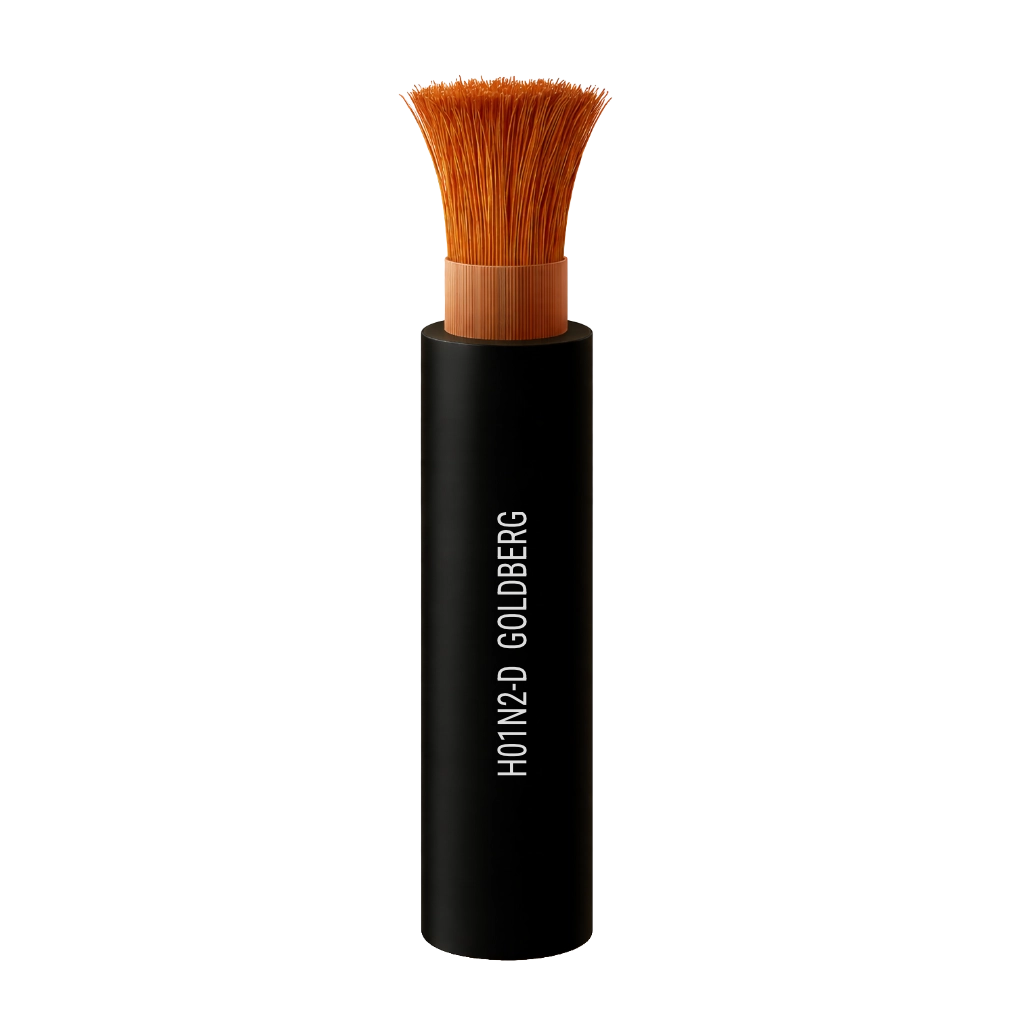

H01N2-D Welding Cable

Rated voltage: 100/100 V
Standard: EN 50525-2-81
Temperature range: -25°C to +85°C
Flame retardant: EN 60332-1-2

Ships within 3–5 business days, subject to prior ex-stock sales
Available in 11 sizes. See the size table
Custom lengths cut to order
Need help choosing? Call +65 6747 3336

About H01N2-D Welding Cable

Ask us for sizes, lengths and lead time. We reply with a quote and the datasheet.

Construction

Conductor	Flexible fine copper wires according to IEC 60228 Class 6
Outer sheath	CPE compound EM5 quality according to EN 50363-3

Electrical

Rated voltage	100/100 V
Test voltage	1000 V
Current rating	according to EN 50565-1

Thermal and mechanical

Temperature range	-25°C to +85°C
Min bending radius	6 x D (outer diameter)

Resistance

Flame retardant	according to EN 60332-1-2
Oil resistant	according to IEC 60811-2-1
UV resistant	720 h Test (xenon arc lamp)

Standards and compliance

Standard	EN 50525-2-81

Sizemm²	Goldberg no.	Insulationmm	Overall diametermm	Conductor resistance at 20°CΩ/km	Current at 100% duty cycle, 25°CA	Approx. weightkg/km	Quote
1C x 10	GB21010	2.0	7.9 – 8.9	1.910	100	153	Quote
1C x 16	GB21016	2.0	9.3 – 10.3	1.210	135	210	Quote
1C x 25	GB21025	2.0	10.3 – 11.5	0.780	180	290	Quote
1C x 35	GB21035	2.0	11.4 – 12.6	0.554	225	387	Quote
1C x 50	GB21050	2.2	13.6 – 14.8	0.386	285	472	Quote
1C x 70	GB21070	2.4	15.3 – 16.7	0.272	355	653	Quote
1C x 95	GB21095	2.6	17.6 – 19.2	0.206	430	879	Quote
1C x 120	GB21120	2.8	19.2 – 21.2	0.161	500	1287	Quote
1C x 150	GB21150	3.0	21.2 – 23.2	0.129	580	1567	Quote
1C x 185	GB21185	3.2	23.2 – 25.6	0.106	665	1900	Quote
1C x 240	GB21240	3.4	25.7 – 28.7	0.080	–	2420	Quote

Values from the Goldberg datasheet and indicative only. Full drums: final length may vary −0% to +10% from the length ordered; lengths cut to order are supplied as ordered.
