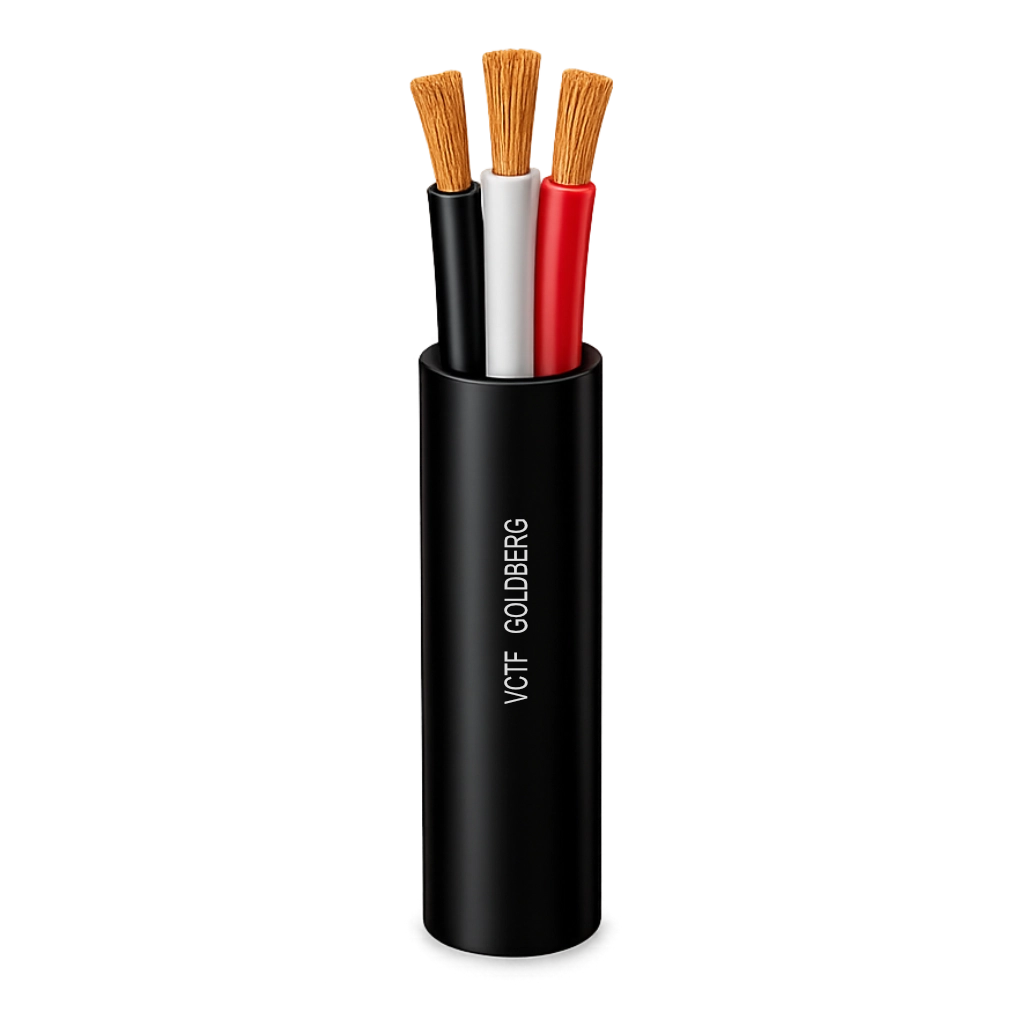

VCTF PVC Cable

Rated voltage: 100 V - 0.5mm² | 300 V - 0.75mm²
Standard: JIS C 3306
Temperature range: -5°C to +60°C
Flame retardant: JIS C 3005

Ships within 3–5 business days, subject to prior ex-stock sales
Available in 7 sizes. See the size table
Custom lengths cut to order
Need help choosing? Call +65 6747 3336

About VCTF PVC Cable

Ask us for sizes, lengths and lead time. We reply with a quote and the datasheet.

Construction

Conductor	Flexible fine copper wires according to JIS C 3102
Insulation	PVC compound
Outer sheath	PVC compound

Electrical

Rated voltage	100 V - 0.5mm² \| 300 V - 0.75mm²
Test voltage	1000 V

Thermal and mechanical

Temperature range	-5°C to +60°C

Resistance

Flame retardant	according to JIS C 3005

Standards and compliance

Standard	JIS C 3306

Sizemm²	Goldberg no.	Insulationmm	Overall diametermm	Conductor resistance at 20°CΩ/km	Current rating at 30°CA	Approx. weightkg/100 m	Quote
2C x 0.5	GB82005	0.5	5.8 – 6.4	36.7	6	5.8	Quote
2C x 0.75	GB820075	0.6	6.4 – 7.0	25.1	8	6.8	Quote
3C x 0.5	GB83005	0.5	6.1 – 7.1	36.7	6	6	Quote
3C x 0.75	GB830075	0.6	6.7 – 7.1	25.1	8	7	Quote
4C x 0.5	GB84005	0.5	6.6 – 7.7	36.7	6	7.5	Quote
4C x 0.75	GB850075	0.6	7.3 – 8.1	25.1	8	8.5	Quote
6C x 0.5	GB86005	0.5	7.3 – 8.1	36.7	6	10	Quote

Values from the Goldberg datasheet and indicative only. Full drums: final length may vary −0% to +10% from the length ordered; lengths cut to order are supplied as ordered.
