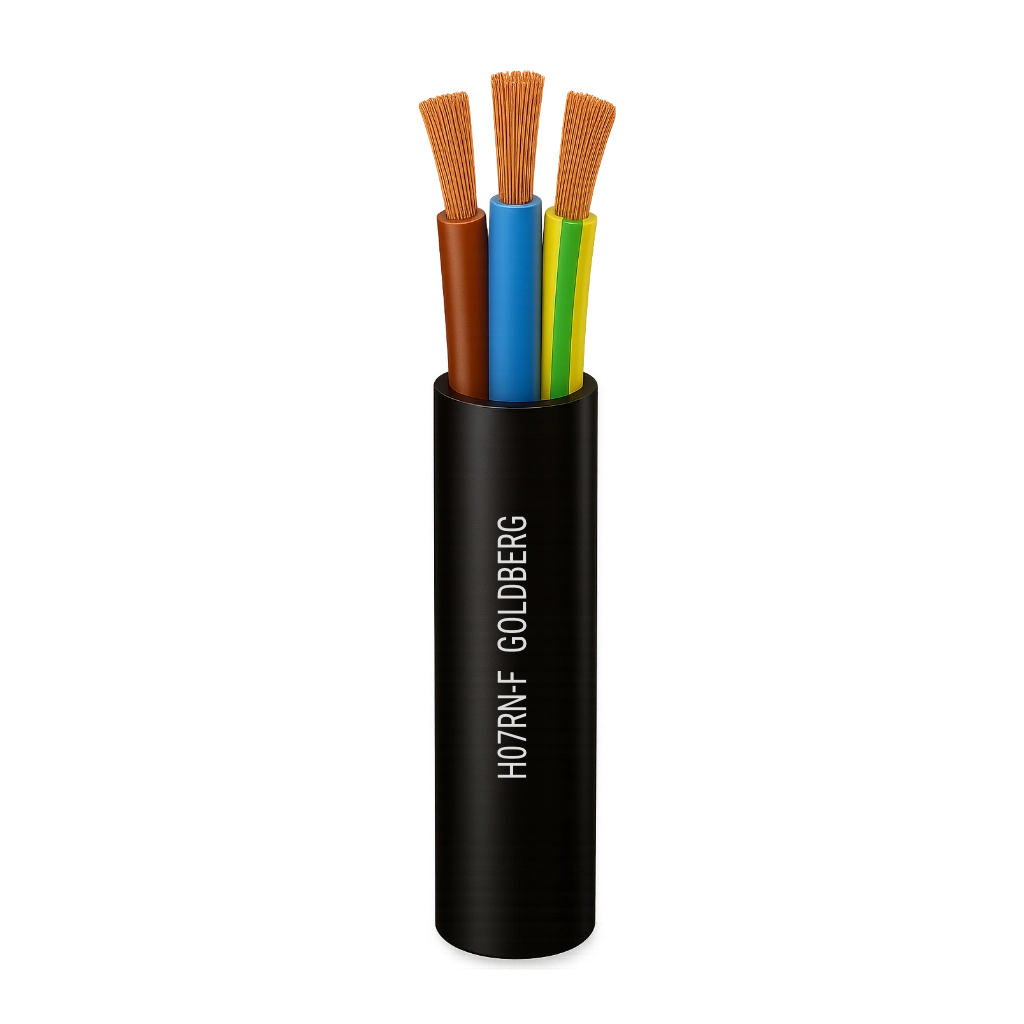

H07RN-F Neoprene Cable

Rated voltage: 450/750 V
Standard: EN 50525-2-21
Temperature range: -25°C to +85°C
Flame retardant: EN 60332-1-2
Certification: VDE

Ships within 3–5 business days, subject to prior ex-stock sales
Available in 90 sizes. See the size table
Custom lengths cut to order
Need help choosing? Call +65 6747 3336

About H07RN-F Neoprene Cable

H07RN-F is a flexible rubber cable resistant to flame, chemical corrosion, oil, UV, impact, vibrations and mechanical stress. It is suitable for use in wet, dry or damp conditions. Installation is apt for permanent outdoor use or within a workshop with explosives environment. For example, horticulture, industrial workshop, large boilers, submersible pumps, heater plates, portable lamps, electric tools, electric appliances, portable motors and generators on building sites, etc.

Construction

Conductor	Flexible fine copper wires according to IEC 60228 Class 5
Insulation	EPR compound EI4 quality according to EN 50363-1
Outer sheath	CPE compound EM2 quality according to EN 50363-2-1

Electrical

Rated voltage	450/750 V
Fixed and protected installation	600/1000 V
Test voltage	2500 V
Current rating	according to EN 50565-1

Thermal and mechanical

Temperature range	-25°C to +85°C
Max conductor temperature	90°C (for fixed installation)
Short-circuit temperature	250°C
Max tensile load	15 N/mm²
Min bending radius	4 to 6 x D (outer diameter)

Resistance

Flame retardant	according to EN 60332-1-2
Oil resistant	according to EN 60811-404
UV resistant	720 h Test (xenon arc lamp)
Impact resistant	according to AG2 condition
Vibration resistant	according to AH3 condition

Standards and compliance

Standard	EN 50525-2-21
Certification	VDEView certificate (PDF)

Sizemm²	Goldberg no.	Insulationmm	Overall diametermm	Conductor resistance at 20°CΩ/km	Current rating at 30°CA	Approx. weightkg/km	Quote
1 x 1.5	GB1100150	0.8	5.7 – 6.7	13.3	23	52	Quote
1 x 2.5	GB1100250	0.9	6.3 – 7.3	7.98	30	67	Quote
1 x 4	GB1100400	1.0	7.2 – 8.4	4.95	42	93	Quote
1 x 6	GB1100600	1.0	7.9 – 9.1	3.30	53	119	Quote
1 x 10	GB1101000	1.2	9.5 – 10.7	1.91	74	192	Quote
1 x 16	GB1101600	1.2	10.8 – 12.3	1.21	100	262	Quote
1 x 25	GB1102500	1.4	12.7 – 14.2	0.78	132	379	Quote
1 x 35	GB1103500	1.4	14.3 – 15.8	0.554	164	495	Quote
1 x 50	GB1105000	1.6	16.5 – 18.1	0.386	208	672	Quote
1 x 70	GB1107000	1.6	18.6 – 20.1	0.272	260	886	Quote
1 x 95	GB1109500	1.8	20.8 – 23.3	0.206	312	1188	Quote
1 x 120	GB1112000	1.8	22.8 – 25.3	0.161	366	1442	Quote
1 x 150	GB1115000	2.0	25.2 – 28.0	0.129	422	1780	Quote
1 x 185	GB1118500	2.2	27.6 – 30.1	0.106	480	2140	Quote
1 x 240	GB1124000	2.4	30.6 – 33.6	0.0801	573	2734	Quote
1 x 300	GB1130000	2.6	33.5 – 36.5	0.0641	659	3324	Quote
1 x 400	GB1140000	2.8	37.4 – 40.4	0.0486	778	4232	Quote
1 x 500	GB1150000	3.0	41.3 – 45.3	0.0384	892	5300	Quote
1 x 630	GB1163000	3.0	47.5 – 51.5	0.0287	1045	6900	Quote
2 x 1	GB1200100	0.8	7.7 – 9.0	19.5	15	102	Quote
2 x 1.5	GB1200150	0.8	8.5 – 10.0	13.3	18.5	129	Quote
2 x 2.5	GB1200250	0.9	10.2 – 11.6	7.98	25	183	Quote
2 x 4	GB1200400	1.0	11.8 – 13.2	4.95	34	246	Quote
2 x 6	GB1200600	1.0	13.1 – 14.8	3.3	43	324	Quote
2 x 10	GB1201000	1.2	17.7 – 18.9	1.91	60	504	Quote
2 x 16	GB1201600	1.2	20.2 – 21.4	1.21	79	680	Quote
2 x 25	GB1202500	1.4	24.3 – 25.5	0.78	105	979	Quote
2 x 35	GB1203500	1.4	27.2 – 28.6	0.554	129	1281	Quote
2 x 50	GB1205000	1.6	31.6 – 33.0	0.386	162	1708	Quote
2 x 70	GB1207000	1.6	35.8 – 37.2	0.272	202	2213	Quote
2 x 95	GB1209500	1.8	40.5 – 43.0	0.206	240	2965	Quote
3G 1	GB1300100	0.8	8.3 – 9.5	19.5	12.5	121	Quote
3G 1.5	GB1300150	0.8	9.2 – 10.6	13.3	15.5	152	Quote
3G 2.5	GB1300250	0.9	10.9 – 12.3	7.98	21	214	Quote
3G 4	GB1300400	1.0	12.7 – 14.1	4.95	29	297	Quote
3G 6	GB1300600	1.0	14.1 – 15.5	3.3	36	387	Quote
3G 10	GB1301000	1.2	19.1 – 20.1	1.91	51	654	Quote
3G 16	GB1301600	1.2	21.8 – 23.0	1.21	67	891	Quote
3G 25	GB1302500	1.4	26.1 – 27.3	0.78	89	1288	Quote
3G 35	GB1303500	1.4	29.3 – 30.5	0.554	110	1693	Quote
3G 50	GB1305000	1.6	34.1 – 35.5	0.386	138	2271	Quote
3G 70	GB1307000	1.6	38.4 – 39.8	0.272	172	2959	Quote
3G 95	GB1309500	1.8	43.3 – 45.2	0.206	204	3980	Quote
3G 120	GB1312000	1.8	47.4 – 49.0	0.161	238	4752	Quote
3G 150	GB1315000	2.0	53.6 – 55.6	0.129	273	5948	Quote
3G 185	GB1318500	2.2	52.0 – 60.2	0.106	309	7118	Quote
3G 240	GB1324000	2.4	57.0 – 67.6	0.0801	365	9231	Quote
4G 1	GB1400100	0.8	9.2 – 10.6	19.5	13	148	Quote
4G 1.5	GB1400150	0.8	10.2 – 11.6	13.3	16	189	Quote
4G 2.5	GB1400250	0.9	12.1 – 13.5	7.98	22	264	Quote
4G 4	GB1400400	1.0	14.0 – 15.4	4.95	30	366	Quote
4G 6	GB1400600	1.0	15.7 – 17.1	3.3	37	492	Quote
4G 10	GB1401000	1.2	20.9 – 22.1	1.91	52	823	Quote
4G 16	GB1401600	1.2	23.8 – 25.4	1.21	69	1127	Quote
4G 25	GB1402500	1.4	28.9 – 30.4	0.78	92	1638	Quote
4G 35	GB1403500	1.4	32.5 – 33.9	0.554	114	2151	Quote
4G 50	GB1405000	1.6	37.7 – 44.3	0.386	143	2952	Quote
4G 70	GB1407000	1.6	42.7 – 51.2	0.272	178	3864	Quote
4G 95	GB1409500	1.8	48.4 – 55.0	0.206	210	5183	Quote
4G 120	GB1412000	1.8	53.0 – 62.5	0.161	246	6200	Quote
4G 150	GB1415000	2.0	58.0 – 67.0	0.129	282	7780	Quote
4G 185	GB1418500	2.2	64.0 – 67.0	0.106	319	9364	Quote
4G 240	GB1424000	2.4	72.0 – 76.0	0.0801	377	12092	Quote
5G 1	GB1500100	0.8	10.2 – 11.6	19.5	13.5	180	Quote
5G 1.5	GB1500150	0.8	11.2 – 12.6	13.3	16.5	225	Quote
5G 2.5	GB1500250	0.9	13.3 – 14.7	7.98	23	318	Quote
5G 4	GB1500400	1.0	15.6 – 17.0	4.95	30	445	Quote
5G 6	GB1500600	1.0	17.5 – 19.0	3.3	38	595	Quote
5G 10	GB1501000	1.2	22.9 – 24.1	1.91	54	982	Quote
5G 16	GB1501600	1.2	26.4 – 28.1	1.21	71	1363	Quote
5G 25	GB1502500	1.4	32.0 – 33.2	0.78	94	1976	Quote
5G 35	GB1503500	1.4	35.7 – 37.8	0.554	117	2638	Quote
5G 50	GB1505000	1.6	41.8 – 43.8	0.386	148	3597	Quote
5G 70	GB1507000	1.6	47.5 – 49.5	0.272	185	4726	Quote
5G 95	GB1509500	1.8	54.4 – 56.8	0.206	222	6299	Quote
5G 120	GB1512000	1.8	58.0 – 73.0	0.161	246	7500	Quote
5G 150	GB1515000	2.0	64.0 – 80.0	0.129	282	9400	Quote
7G 1.5	GB1700150	0.8	15.0 – 16.6	13.3	15	325	Quote
9G 1.5	GB1900150	0.8	16.7 – 18.0	13.3	15	444	Quote
12G 1.5	GB11200150	0.9	17.8 – 19.4	13.3	15	485	Quote
18G 1.5	GB11800150	0.9	22.8 – 23.8	13.3	15	693	Quote
19G 1.5	GB11900150	0.9	22.8 – 23.8	13.3	15	715	Quote
24G 1.5	GB12400150	0.9	24.8 – 25.6	13.3	15	895	Quote
7G 2.5	GB1700250	0.9	17.2 – 18.8	7.98	20	453	Quote
12G 2.5	GB11200250	0.9	21.5 – 23.0	7.98	20	748	Quote
18G 2.5	GB11800250	0.9	26.1 – 27.5	7.98	20	1060	Quote
19G 2.5	GB11900250	0.9	26.1 – 27.5	7.98	20	1096	Quote
24G 2.5	GB12400250	0.9	24.3 – 30.7	7.98	20	1300	Quote
7G 4	GB1700400	1.0	17.8 – 19.2	4.95	26	583	Quote
7G 6	GB1700600	1.0	21.1 – 23.2	3.30	35	867	Quote

Values from the Goldberg datasheet and indicative only. Full drums: final length may vary −0% to +10% from the length ordered; lengths cut to order are supplied as ordered.

More from Rubber Flexible Cable

View the range

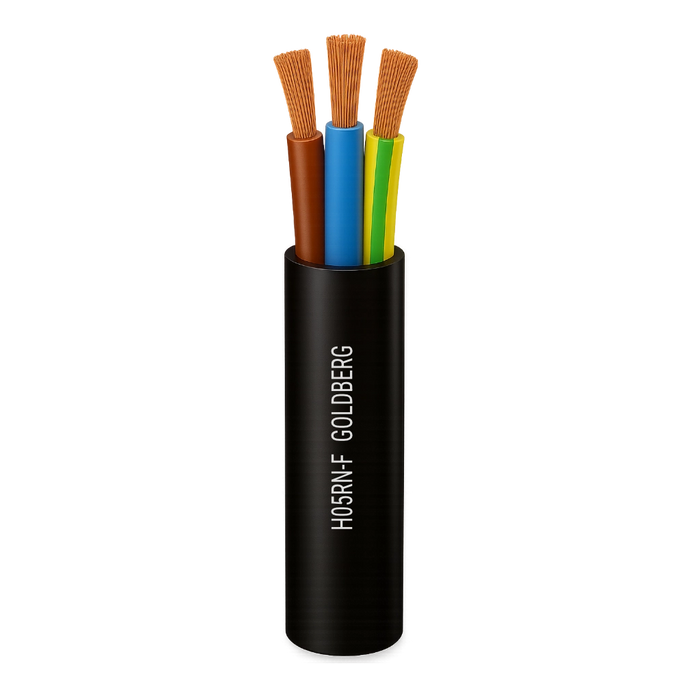

H05RN-F Neoprene Cable

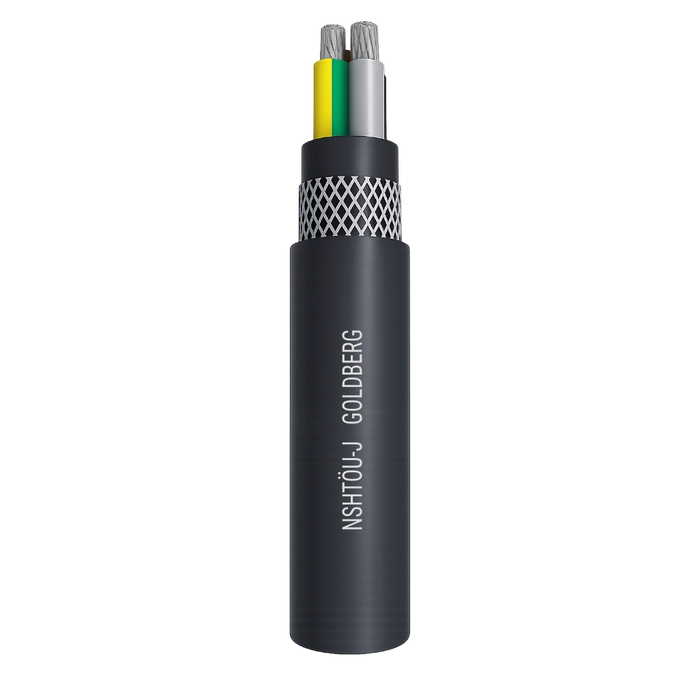

NSHTÖU-O/J Rubber Cable

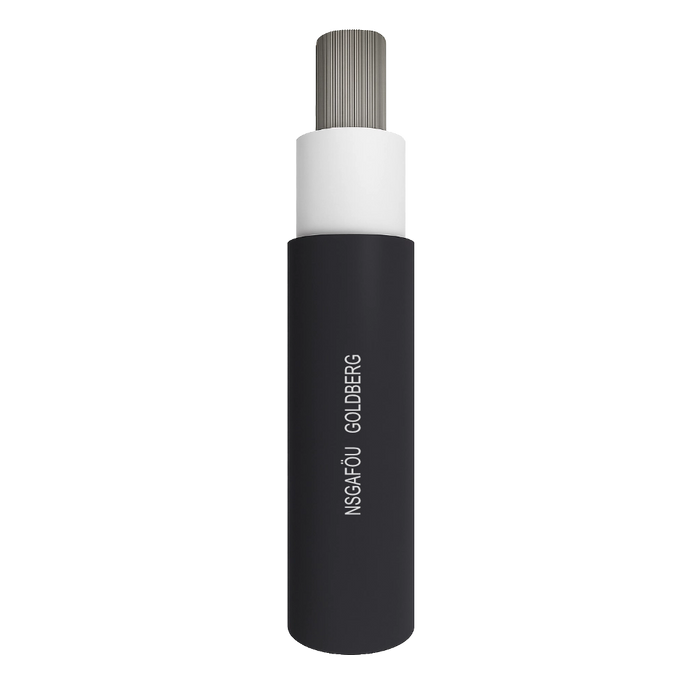

NSGAFÖU Rubber Cable
