IP44 splash-proof CEE in-line connector (female socket) to IEC 60309-2 for 32 A circuits, for fitting on the end of a flexible cable. Made in 110 V (yellow), 230 V (blue) and 400 V (red) versions; the clock position of the earth contact keys each socket to its voltage, so it only accepts the matching plug.
Dimension
mm
a
171
b
75
c
59
d
88.6
e
67.4
f
88.6
g
34.5

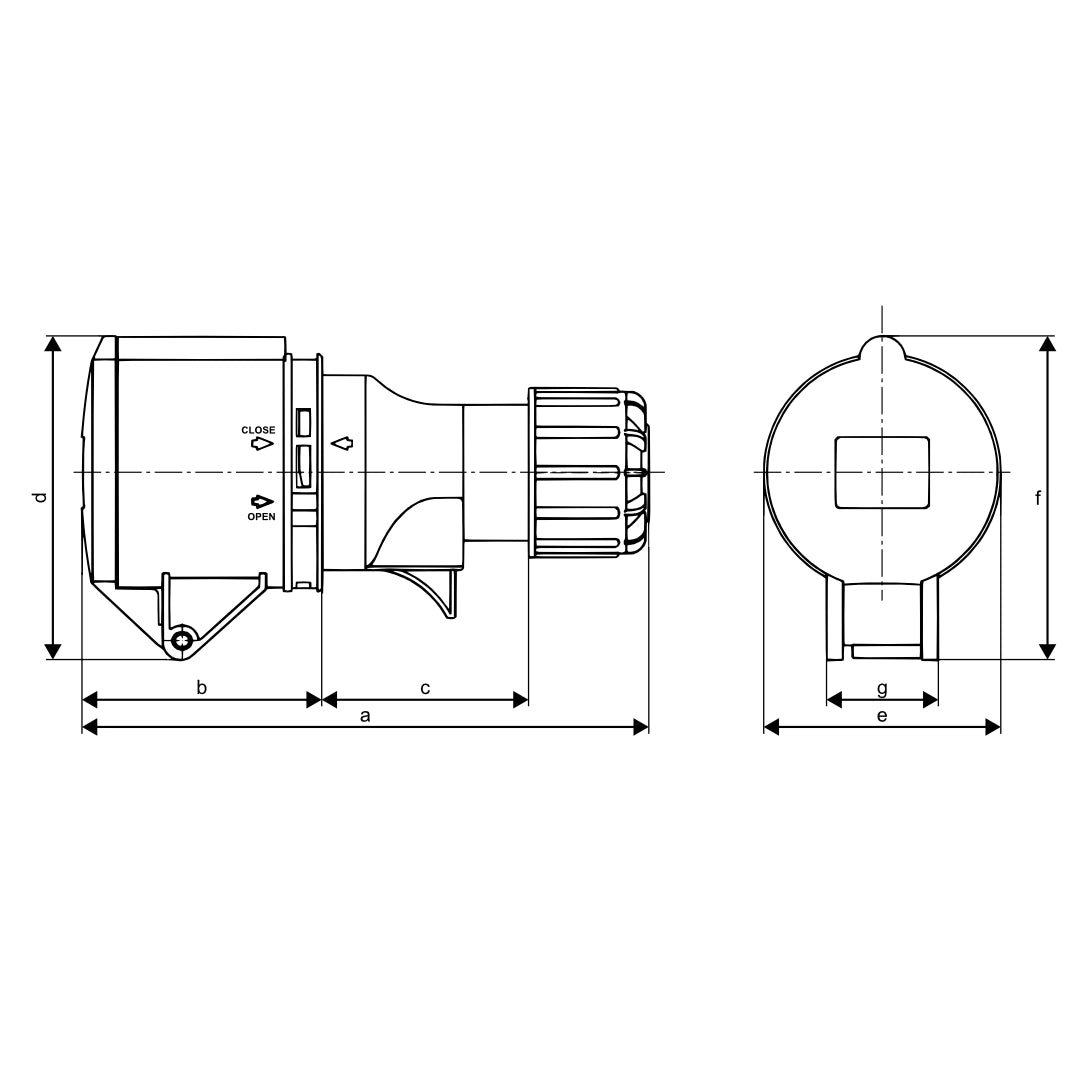

Dimensions a to g refer to the drawing.
Electrical
Rated current
32 A
Rated voltage
110 / 230 / 400 V
Frequency
50/60 Hz
Number of poles
2P+E (3 pins)
Earth contact position
110 V – 4h · 230 V – 6h · 400 V – 9h
Mechanical
Type
in-line connector (female)
Degree of protection
IP44 – protected against solid objects > 1 mm and splashing water
