IP67 dust-tight and watertight CEE industrial plug to IEC 60309-2 for 32 A circuits. Made in 110 V (yellow), 230 V (blue) and 400 V (red) versions; the clock position of the earth contact keys each plug to its voltage, so it only mates with the matching socket.
Dimension
mm
a
157
b
120
c
34.1
d
63
e
93.5
f
50.5
g
26

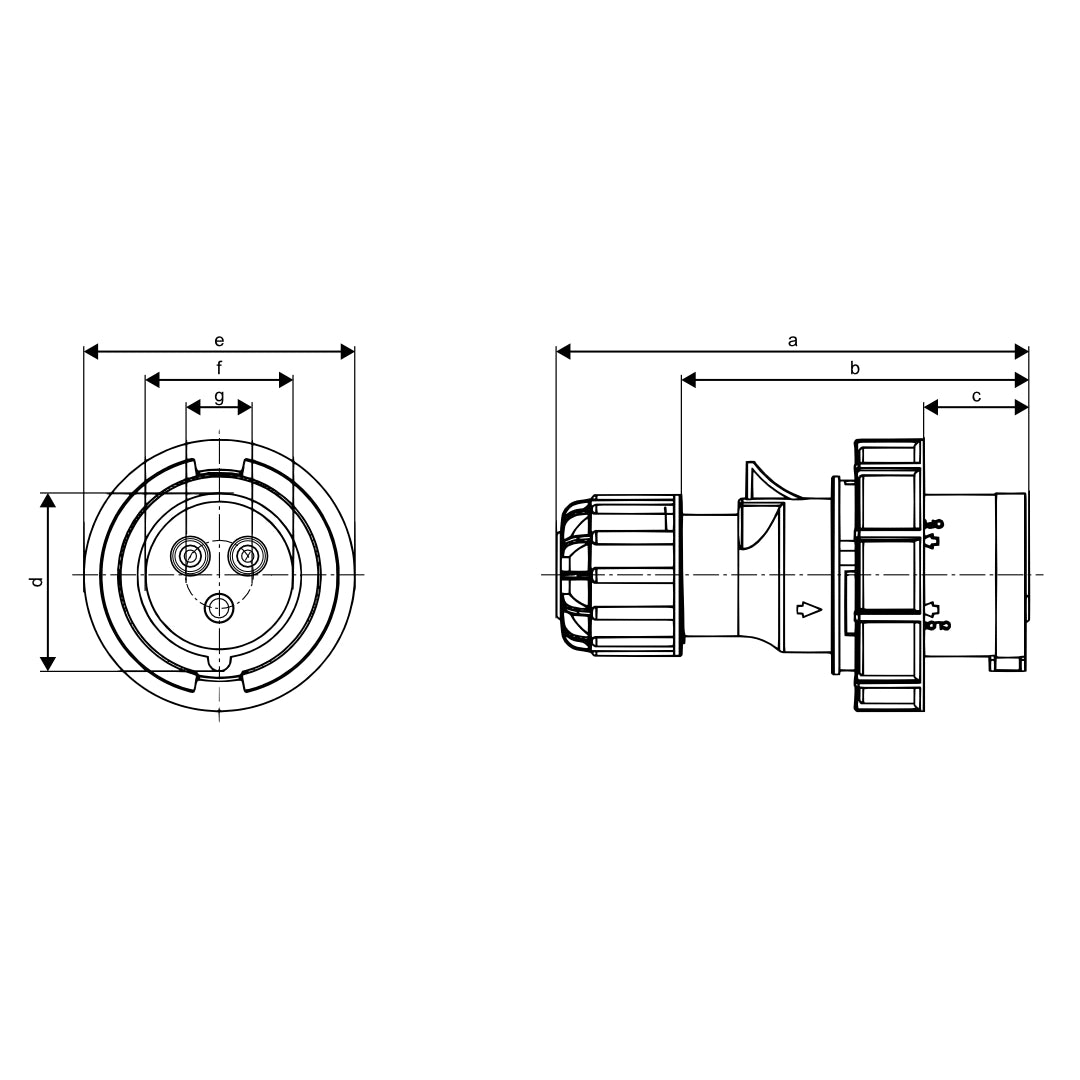

Dimensions a to g refer to the drawing.
Electrical
Rated current
32 A
Rated voltage
110 / 230 / 400 V
Frequency
50/60 Hz
Number of poles
2P+E (3 pins)
Earth contact position
110 V – 4h · 230 V – 6h · 400 V – 9h
Mechanical
Degree of protection
IP67 – dust-tight, protected against temporary immersion
