IP67 dust-tight and watertight CEE in-line connector (female socket) to IEC 60309-2 for 125 A circuits, for fitting on the end of a flexible cable. Made in 110 V (yellow), 230 V (blue) and 400 V (red) versions; the clock position of the earth contact keys each socket to its voltage, so it only accepts the matching plug.
Dimension
mm
a
302.3
b
115.4
c
122.9
d
114.2
e
129.7
f
123.4
g
34.5

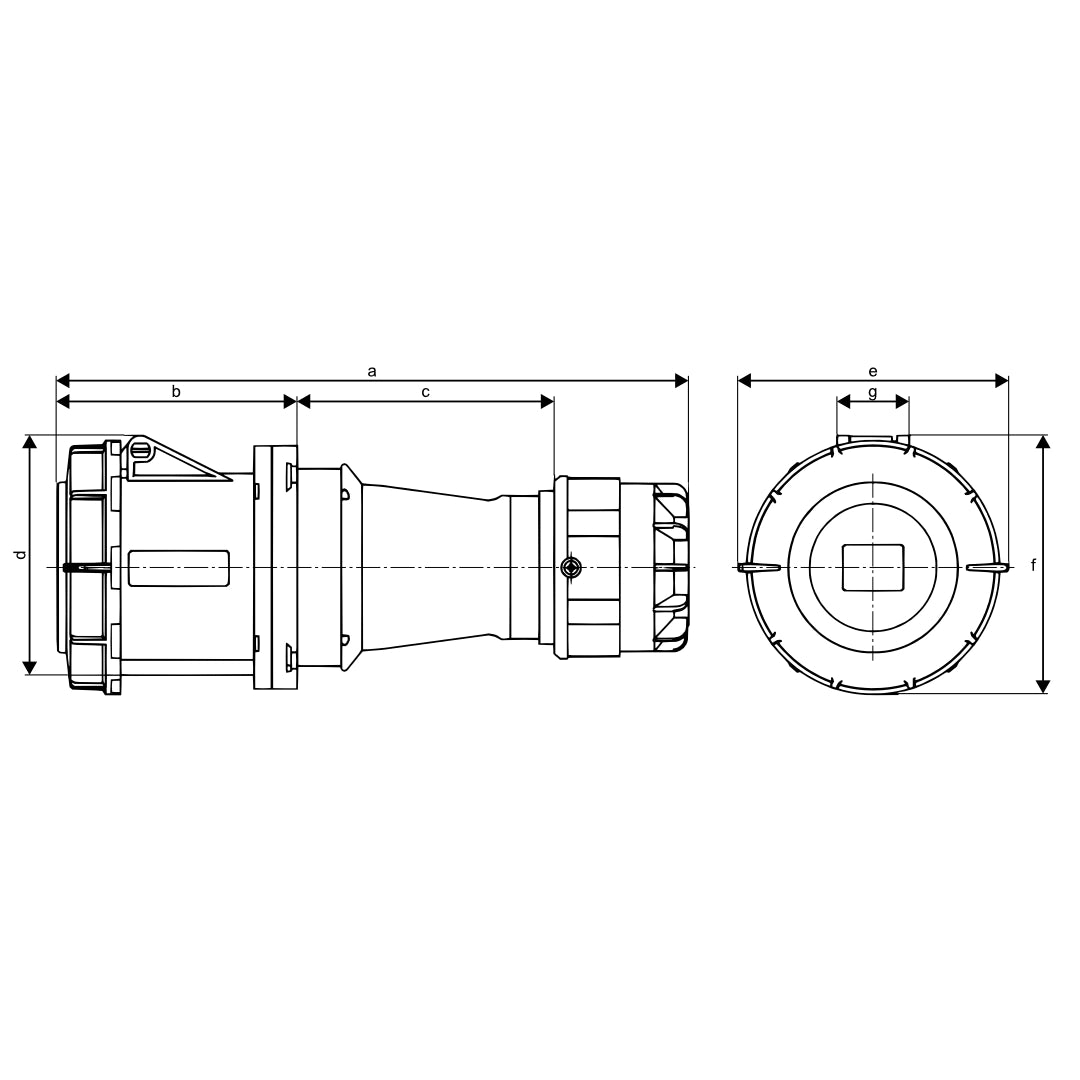

Dimensions a to g refer to the drawing.
Electrical
Rated current
125 A
Rated voltage
110 / 230 / 400 V
Frequency
50/60 Hz
Number of poles
3P+E (4 pins)
Earth contact position
110 V – 4h · 230 V – 9h · 400 V – 6h
Mechanical
Type
in-line connector (female)
Degree of protection
IP67 – dust-tight, protected against temporary immersion
