Rubber Flexible Cable

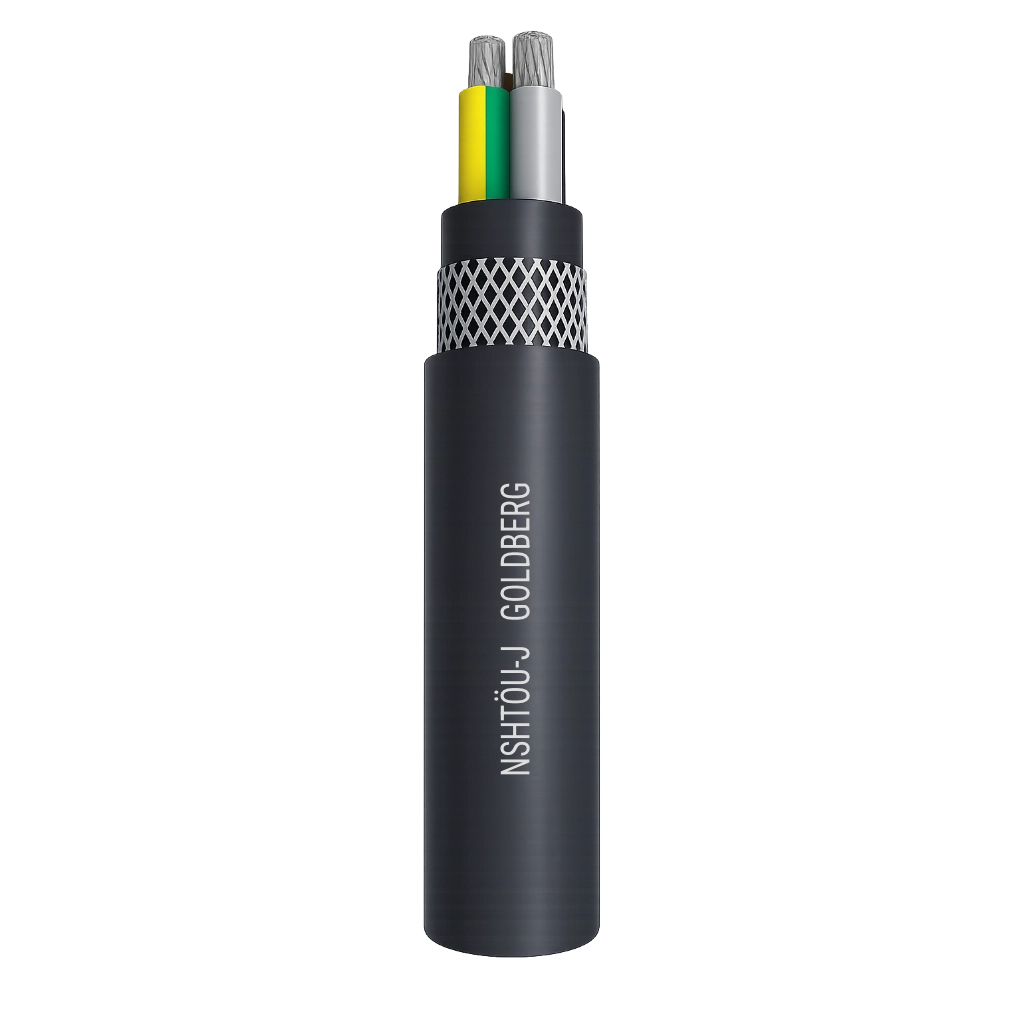

NSHTÖU-O/J Rubber Cable
- Rated voltage
- 600/1000 V
- Standard
- VDE 0250-814, TSE K 371
- Temperature range
- -25°C to +80°C (flexing), -40°C to +80°C (fixed)
- Flame retardant
- IEC 60332-1-2, VDE 0482-332-1-2
- Ships within 3–5 business days, subject to prior ex-stock sales
- Available in 68 sizes. See the size table
- Custom lengths cut to order
- Need help choosing? Call +65 6747 3336
About NSHTÖU-O/J Rubber Cable
NSHTÖU-O/J is a heavy-duty rubber cable for reeling drums, cranes, conveyors and other moving machinery. An anti-torsion textile braid between the inner and outer sheath keeps it from twisting under repeated winding, and the cross-linked elastomeric sheath resists flame and oil.
Construction
| Conductor | Electrolytic annealed, class 5 stranded plain or tinned copper wires |
|---|---|
| Separator | A suitable tape may be applied over the conductor |
| Insulation | 3GI3 type cross-linked elastomeric compound (VDE 0207 - Part 20) |
| Inner sheath | GM1b type cross-linked elastomeric compound (VDE 0207 - Part 21) |
| Reinforcement | Anti-torsion textile braid embedded in the sheath |
| Outer sheath | 5GM3 type cross-linked elastomeric compound (VDE 0207 - Part 21) |
| Colour | Black |
Electrical
| Rated voltage | 600/1000 V |
|---|---|
| Test voltage | 3.5 kV AC |
| Current rating | according to VDE 0298-4 Tab. 11 |
Thermal and mechanical
| Temperature range | -25°C to +80°C (flexing), -40°C to +80°C (fixed) |
|---|---|
| Max conductor temperature | 90°C |
| Short-circuit temperature | 250°C (max. 5 s) |
| Min installation temperature | -15°C |
| Max tensile load | 20 N/mm² |
| Max working speed | 120 m/min |
| Min bending radius | according to VDE 0298-3 Tab. 3 |
Resistance
| Flame retardant | according to IEC 60332-1-2, VDE 0482-332-1-2 |
|---|---|
| Oil resistant | according to VDE 0473-811-404, EN 60811-404 |
Standards and compliance
| Standard | VDE 0250-814, TSE K 371 |
|---|---|
| General requirements | VDE 0250-1 |
| Guide to use | VDE 0298-3, VDE 0298-4 |
| Electrical tests | VDE 0472-501, 502, 503, 508 |
| Non-electrical tests | VDE 0472-401, 402, 602, 303, 615 |
| Conductor resistance | VDE 0295, IEC 60228 |
| Sizemm² | Goldberg no. | Overall diametermm | Approx. weightkg/km | Quote |
|---|---|---|---|---|
| 3G 1.5 | GB13300150 | 13.8 – 14.8 | 270 | Quote |
| 3G 2.5 | GB13300250 | 15.3 – 16.3 | 330 | Quote |
| 3G 4 | GB13300400 | 17.0 – 18.0 | 420 | Quote |
| 3G 6 | GB13300600 | 18.3 – 19.3 | 520 | Quote |
| 3G 10 | GB13301000 | 21.4 – 23.3 | 750 | Quote |
| 3G 16 | GB13301600 | 23.5 – 25.4 | 970 | Quote |
| 3G 25 | GB13302500 | 28.2 – 30.2 | 1450 | Quote |
| 3G 35 | GB13303500 | 31.6 – 33.6 | 1890 | Quote |
| 3G 50 | GB13305000 | 36.8 – 38.8 | 2600 | Quote |
| 3G 70 | GB13307000 | 40.4 – 43.3 | 3340 | Quote |
| 3G 95 | GB13309500 | 46.3 – 49.2 | 4380 | Quote |
| 3G 120 | GB13312000 | 49.9 – 52.9 | 5330 | Quote |
| 3G 150 | GB13315000 | 55.4 – 58.4 | 6700 | Quote |
| 3G 185 | GB13318500 | 62.6 – 66.5 | 8100 | Quote |
| 3G 240 | GB13324000 | 67.8 – 70.2 | 10850 | Quote |
| 3 x 35 + 3G 16/3 | GB13603500 | 31.6 – 33.6 | 2100 | Quote |
| 3 x 50 + 3G 25/3 | GB13605000 | 36.8 – 38.8 | 2800 | Quote |
| 3 x 70 + 3G 35/3 | GB13607000 | 40.4 – 43.3 | 3790 | Quote |
| 3 x 95 + 3G 50/3 | GB13609500 | 46.3 – 49.2 | 4710 | Quote |
| 3 x 120 + 3G 70/3 | GB13612000 | 49.9 – 52.9 | 5840 | Quote |
| 3 x 150 + 3G 70/3 | GB13615000 | 55.4 – 58.4 | 7080 | Quote |
| 3 x 185 + 3G 95/3 | GB13618500 | 62.6 – 66.5 | 8940 | Quote |
| 3 x 240 + 3G 120/3 | GB13624000 | 67.8 – 70.2 | 11320 | Quote |
| 4G 1.5 | GB13400150 | 14.6 – 15.6 | 300 | Quote |
| 4G 2.5 | GB13400250 | 16.7 – 17.7 | 400 | Quote |
| 4G 4 | GB13400400 | 18.2 – 19.2 | 500 | Quote |
| 4G 6 | GB13400600 | 19.6 – 20.6 | 620 | Quote |
| 4G 10 | GB13401000 | 23.0 – 24.9 | 890 | Quote |
| 4G 16 | GB13401600 | 25.1 – 27.0 | 1170 | Quote |
| 4G 25 | GB13402500 | 32.2 – 34.2 | 1900 | Quote |
| 4G 35 | GB13403500 | 34.4 – 36.4 | 2340 | Quote |
| 4G 50 | GB13405000 | 40.0 – 42.9 | 3250 | Quote |
| 4G 70 | GB13407000 | 44.2 – 47.1 | 4180 | Quote |
| 4G 95 | GB13409500 | 50.6 – 53.6 | 5500 | Quote |
| 4G 120 | GB13412000 | 56.5 – 59.5 | 6950 | Quote |
| 4G 150 | GB13415000 | 62.6 – 66.5 | 8570 | Quote |
| 4G 185 | GB13418500 | 67.4 – 71.4 | 10160 | Quote |
| 5G 1.5 | GB13500150 | 15.5 – 16.5 | 350 | Quote |
| 5G 2.5 | GB13500250 | 17.8 – 18.8 | 460 | Quote |
| 5G 4 | GB13500400 | 19.4 – 20.4 | 580 | Quote |
| 5G 6 | GB13500600 | 21.3 – 23.2 | 750 | Quote |
| 5G 10 | GB13501000 | 24.8 – 26.7 | 1060 | Quote |
| 5G 16 | GB13501600 | 27.1 – 29.0 | 1410 | Quote |
| 5G 25 | GB13502500 | 35.0 – 37.0 | 2290 | Quote |
| 5G 35 | GB13503500 | 38.8 – 40.8 | 2940 | Quote |
| 5G 50 | GB13505000 | 43.6 – 46.5 | 3940 | Quote |
| 5G 70 | GB13507000 | 50.0 – 53.0 | 5300 | Quote |
| 7G 1.5 | GB13700150 | 18.0 – 19.0 | 440 | Quote |
| 12G 1.5 | GB131200150 | 20.0 – 21.9 | 580 | Quote |
| 18G 1.5 | GB131800150 | 23.1 – 25.0 | 790 | Quote |
| 24G 1.5 | GB132400150 | 26.7 – 28.6 | 1040 | Quote |
| 30G 1.5 | GB133000150 | 27.7 – 29.6 | 1140 | Quote |
| 36G 1.5 | GB133600150 | 30.0 – 32.0 | 1360 | Quote |
| 42G 1.5 | GB134200150 | 32.1 – 34.1 | 1570 | Quote |
| 44G 1.5 | GB134400150 | 35.0 – 37.0 | 1790 | Quote |
| 50G 1.5 | GB135000150 | 36.7 – 38.7 | 1990 | Quote |
| 7G 2.5 | GB13700250 | 20.2 – 22.1 | 590 | Quote |
| 12G 2.5 | GB131200250 | 23.2 – 25.1 | 790 | Quote |
| 18G 2.5 | GB131800250 | 26.8 – 28.7 | 1110 | Quote |
| 24G 2.5 | GB132400250 | 31.2 – 33.2 | 1480 | Quote |
| 30G 2.5 | GB133000250 | 32.4 – 34.4 | 1620 | Quote |
| 36G 2.5 | GB133600250 | 36.1 – 38.1 | 2030 | Quote |
| 42G 2.5 | GB134200250 | 38.7 – 40.7 | 2330 | Quote |
| 44G 2.5 | GB134400250 | 41.8 – 44.7 | 2650 | Quote |
| 50G 2.5 | GB135000250 | 43.9 – 45.6 | 2990 | Quote |
| 7G 4 | GB13700400 | 22.6 – 24.5 | 760 | Quote |
| 12G 4 | GB131200400 | 30.3 – 32.3 | 1400 | Quote |
| 18G 4 | GB131800400 | 31.9 – 33.9 | 1580 | Quote |
Values from the Goldberg datasheet and indicative only. Full drums: final length may vary −0% to +10% from the length ordered; lengths cut to order are supplied as ordered.
