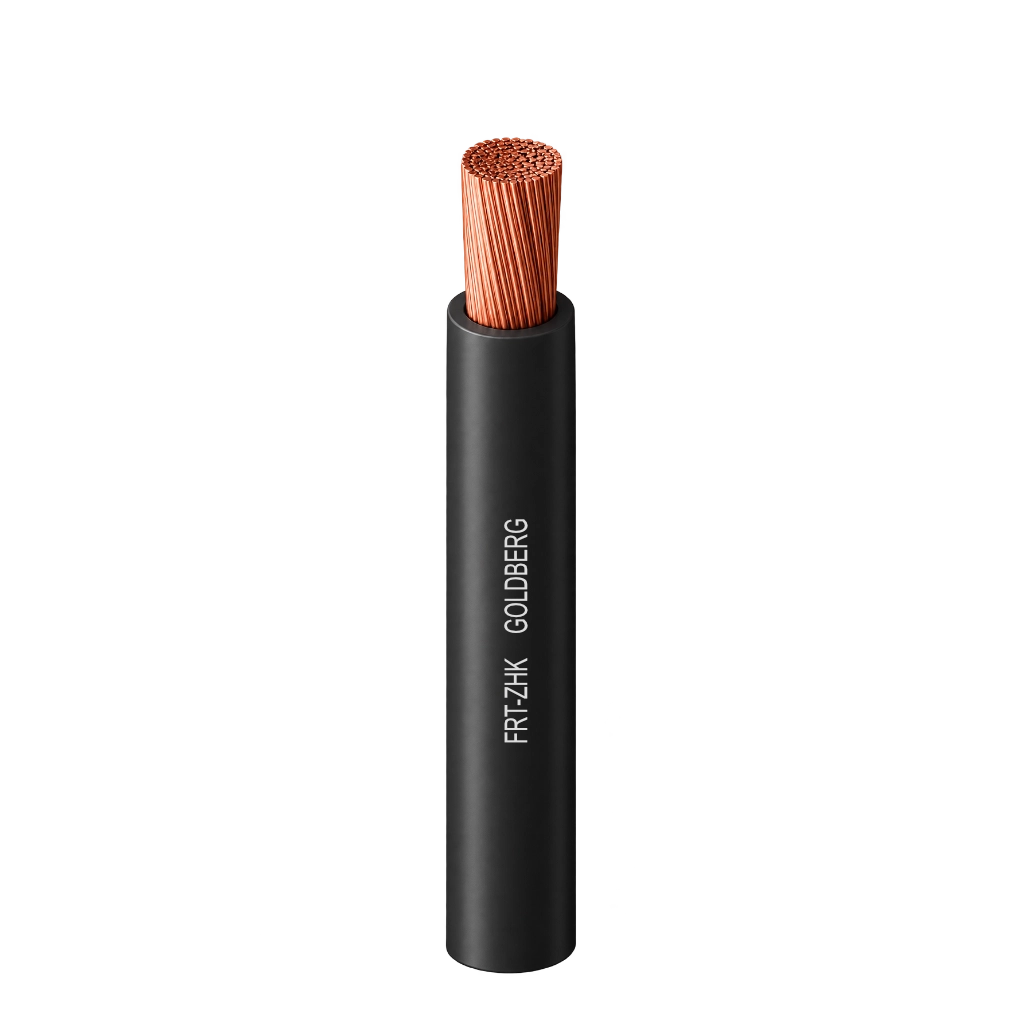

FRT-ZHK H05Z-K LSZH Flexible Cable

Rated voltage: 300/500 V
Standard: Based on BS EN 50525-3-41 (H05Z-K)
Temperature range: -15°C to +90°C
Flame retardant: IEC 60332-1-2

Ships within 3–5 business days, subject to prior ex-stock sales
Available in 3 sizes. See the size table
Custom lengths cut to order
Need help choosing? Call +65 6747 3336

About FRT-ZHK H05Z-K LSZH Flexible Cable

FRT-ZHK 300/500V is the smaller single-core version of FRT-ZHK, in 0.5 to 1 mm², for control and signal wiring inside panels, switchboards and equipment where smoke and toxic fumes must be kept down in a fire.

Construction

Conductor	Flexible copper conductor according to IEC 60228 Class 5
Insulation	Cross-linked polyolefin (LSZH) low smoke halogen-free compound
Colour	Black, green/yellow, blue, white, brown, grey or others

Electrical

Rated voltage	300/500 V
Test voltage	2.0 kV / 5 min

Thermal and mechanical

Temperature range	-15°C to +90°C
Short-circuit temperature	250°C
Max tensile load	50 N/mm²
Min bending radius	4 x D (outer diameter)

Resistance

Flame retardant	according to IEC 60332-1-2
Low smoke zero halogen	according to IEC 61034-2, IEC 60754-1 and IEC 60754-2

Standards and compliance

Standard	Based on BS EN 50525-3-41 (H05Z-K)

Sizemm²	Goldberg no.	Min. insulationmm	Nominal insulationmm	Mean overall diametermm	Max. DC resistance at 20°CΩ/km	Approx. weightkg/km	Quote
1 x 0.5	GB11100050	0.44	0.6	1.8 – 2.4	36	9	Quote
1 x 0.75	GB11100075	0.44	0.6	2.0 – 2.6	26	12	Quote
1 x 1	GB11100100	0.44	0.6	2.2 – 2.8	19.5	14	Quote

Values from the Goldberg datasheet and indicative only. Full drums: final length may vary −0% to +10% from the length ordered; lengths cut to order are supplied as ordered.
