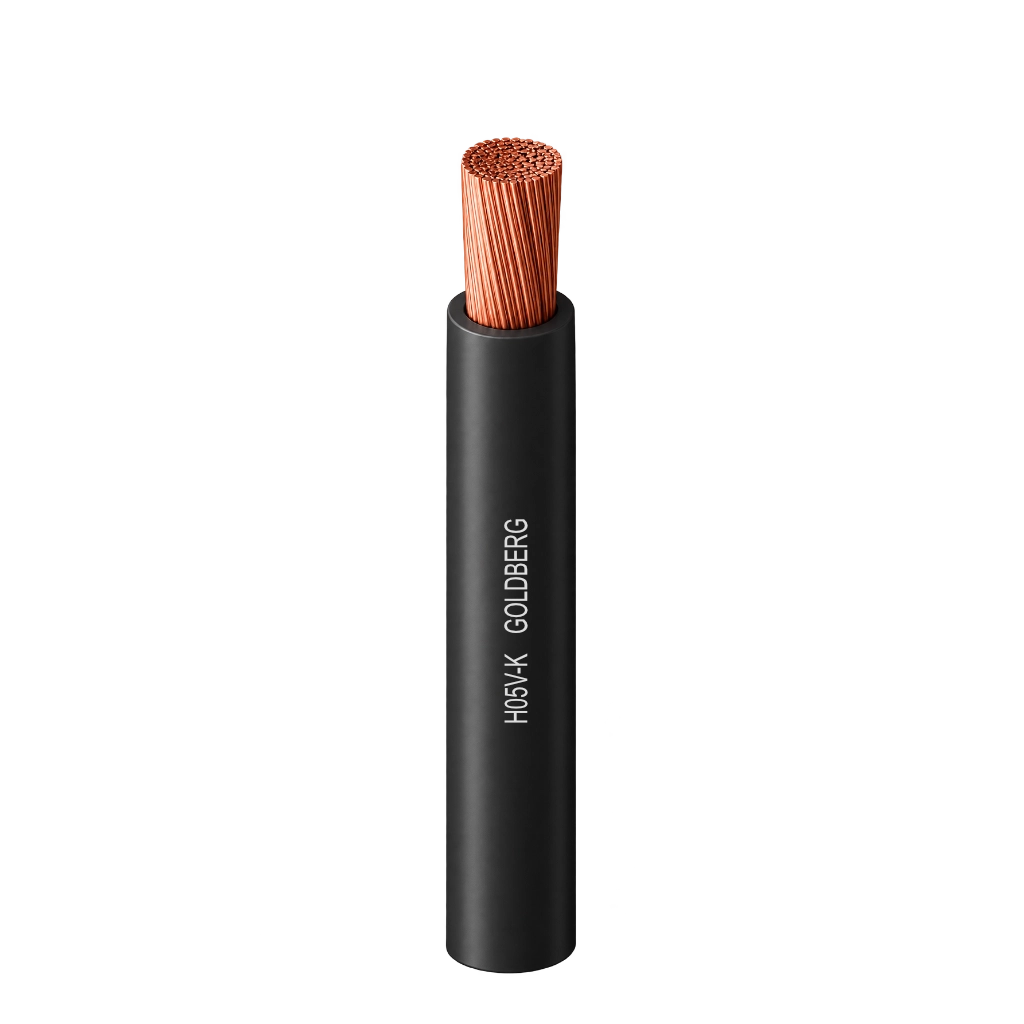

Panel & Building Wire H05V-K PVC Cable
Rated voltage 300/500 V
Standard EN 50525-2-31 (IEC 60227-3 / SS 358-3)
Temperature range -15°C to +70°C (fixed), +5°C to +70°C (during installation)
Flame retardant EN 60332-1-2
Ships within 3–5 business days, subject to prior ex-stock sales Available in 3 sizes. See the size table Custom lengths cut to order Need help choosing? Call +65 6747 3336
Details Sizes and Goldberg numbers 3
About H05V-K PVC Cable Ask us for sizes, lengths and lead time. We reply with a quote and the datasheet.
Construction Conductor Flexible fine copper wires according to IEC 60228 Class 5 Insulation PVC compound TI1 according to EN 50363-3 Colour Black, blue, brown, green, grey, light blue, orange, pink, red, violet, white, yellow, green-and-yellow
Electrical Rated voltage 300/500 V Test voltage 2000 V Current rating Free air to DIN VDE 0298-4. In conduit or trunking to SS 638 / BS 7671, method B. * Estimated, not tabulated in these standards
Thermal and mechanical Temperature range -15°C to +70°C (fixed), +5°C to +70°C (during installation) Max conductor temperature 70°C Short-circuit temperature 160°C Max tensile load 50 N/mm² during installation, 15 N/mm² in service (max. 1000 N) Min bending radius 4 x D
Resistance Flame retardant according to EN 60332-1-2
Standards and compliance Standard EN 50525-2-31 (IEC 60227-3 / SS 358-3)
Values from the Goldberg datasheet and indicative only. Full drums: final length may vary −0% to +10% from the length ordered; lengths cut to order are supplied as ordered.
